Bimba Rodless Actuators

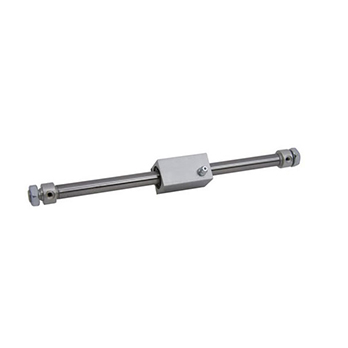

Bimba Ultran® Rodless cylinders feature magnets on the carriage and piston that form a strong bond that holds them together. When the cylinder is actuated, the piston and carriage move back and forth as one unit. Common application uses for this cylinder include transferring product, feeding, opening doors, cutting, and more.
- Bore sizes: 5/16", 7/16", 9/16", 3/4", 7/8", 1-1/16", 1-1/4", 1-1/2", 2"
- Space savings of nearly 50% in most models
- Composite self-lubricating bearings
- Carriage magnetically coupled to the piston
- Pressure rating: 100 PSI (air or hydraulic)
- Temperature range: 0°F to 170°F

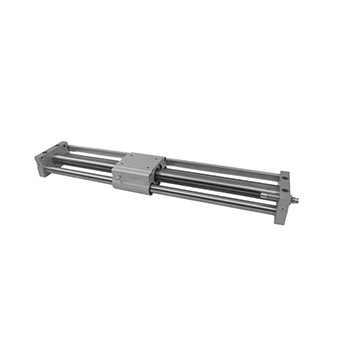

The Ultran® Slide features built in guides for self-guided motion with about 50% space savings over conventional cylinders. These actuators are pre-lubricated at the factory, which greatly increases cylinder life. They are designed to handle side and moment loads. These load carrying capabilities can be enhanced by ordering external shock absorbers.
- Bore sizes: 5/16", 7/16", 9/16", 3/4", 7/8", 1-1/16", 1-1/4", 1-1/2", 2"
- Options include stroke adjustment (both ends or one end)
- Accessories include shock absorbers, stroke adjustments, and stop collars
- Temperature range: 0°F to 170°F
- Optional bumpers to reduce noise
- Midstroke and end of stroke position sensing available

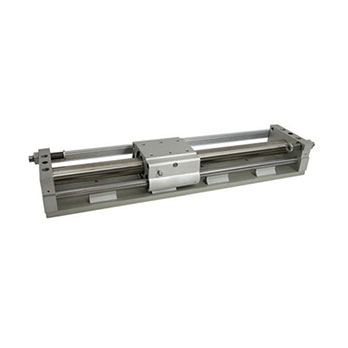

The Bimba Ultran® High Load Slides have large load bearing capabilities, 304 stainless steel body, “U” Cup seals for lower dynamic friction, greater carriage precision, and leak-free construction. The base model UHL offers both axial and alternate port locations. These actuators are repairable, and must be sent to Bimba for any repairs needed.
- Bore sizes: 1-1/16", 1-1/4", 1-1/2"
- Easily accessible carriage lubrication port
- Internally lubricated piston seals for long life
- Stroke lengths to 132"
- Shock absorbers to decelerate loads
- Optional bumpers to reduce noise
Ultran® Band Plus rodless actuators save space over traditional piston rod actuators by up to 50%. A lightweight aluminum frame reduces overall weight and can be mounted directly to a machine. Three available carriage styles accommodate a variety of applications.
- Bore sizes from 16mm to 80mm
- Internal, external, and roller bearing carriage options
- Universal mounting grooves
- Patented sealing system
- Dust protection comes standard

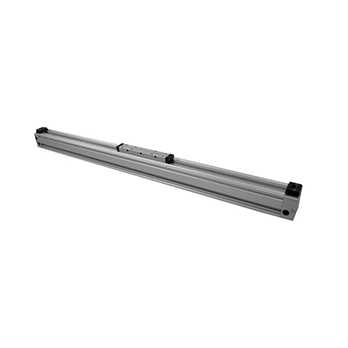

The Bimba Ultran® Band rodless cylinder features a specially engineered sealing strip which outperforms all other band sealing systems on the market. A stainless steel cover strip protects the sealed area and prolongs the life of the band. These cylinders are used in a variety of applications including opening/closing doors, conveying, packaging, and more.
- Select UB/UBS model for inch threads and stroke lengths
- Bore sizes: 18mm, 25mm, 32mm, 40mm, 50mm, 63mm
- 4 model types available
- Additional guiding optional
- All models are switch ready
- Unique five-ported endcaps provide maximum plumbing flexibility
Bimba Ultran® Rodless cylinders feature magnets on the carriage and piston that form a strong bond that holds them together. When the cylinder is actuated, the piston and carriage move back and forth as one unit. Common application uses for this cylinder include transferring product, feeding, opening doors, cutting, and more.
- Bore sizes: 8mm, 11mm, 14mm, 19mm, 22mm, 27mm, 32mm, 38mm, 50mm
- Space savings of nearly 50% in most models
- Composite self-lubricating bearings
- Carriage magnetically coupled to the piston
- Pressure rating: 100 PSI (air or hydraulic)
- Temperature range: 0°F to 170°F

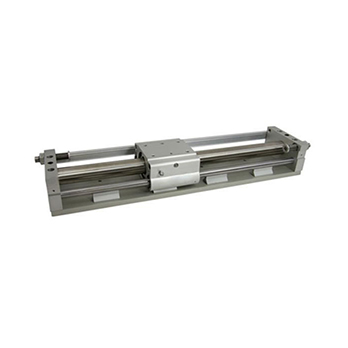

The Ultran® Slide features built in guides for self-guided motion with about 50% space savings over conventional cylinders. These actuators are pre-lubricated at the factory, which greatly increases cylinder life. They are designed to handle side and moment loads. These load carrying capabilities can be enhanced by ordering external shock absorbers.
- Bore sizes: 8mm, 11mm, 14mm, 19mm, 22mm, 27mm, 32mm, 38mm, 50mm
- Options include stroke adjustment (both ends or one end)
- Accessories include shock absorbers, stroke adjustments, and stop collars
- Temperature range: 0°F to 170°F
- Optional bumpers to reduce noise
- Midstroke and end of stroke position sensing available

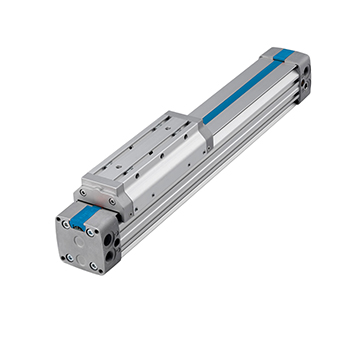

The Bimba metric Ultran® Band rodless cylinder features a specially engineered sealing strip which outperforms all other band sealing systems on the market. A stainless steel cover strip protects the sealed area and prolongs the life of the band. These cylinders are used in a variety of applications including opening/closing doors, conveying, packaging, and more.
- Bore sizes: 18mm, 25mm, 32mm, 40mm, 50mm, 63mm
- Stroke lengths available up to 3000mm maximum
- 4 model types available
- Additional guiding optional
- All models are switch ready
- Unique five-ported endcaps provide maximum plumbing flexibility
